Digital Twin Development: A 7-Step Practical Guide

Imagine: A critical piece of equipment suddenly stops. Identifying the root cause is time-consuming, essential parts are unavailable, and the production schedule is immediately disrupted. The ripple effects escalate rapidly throughout your entire operation.

According to research conducted by Aberdeen, a U.S.-based market research firm, unexpected downtime of this kind can cost a company up to $260,000 per hour.

And that is just the baseline. When an incident stretches on for hours or days, and you factor in late delivery penalties, emergency repair costs, parts replacement, and the erosion of client trust, a single event can easily exceed $1 million, or even $10 million.

What Is a Digital Twin?

A digital twin is an exact virtual replica of a real-world object or system, built within a digital environment. Factory machinery, buildings, cities, and even the human body can all be represented as digital twins.

Within a digital twin, you can simulate real-world failures before they occur and identify preventive measures in advance. Through this virtual replica, you can generate precisely the data your real-world operations need.

What Are the Advantages of a Digital Twin?

Here is a closer look at the benefits a digital twin delivers.

1) Predictive Maintenance: Catching Warning Signs Before an Incident Occurs

A digital twin learns normal operating patterns and automatically detects signals that deviate from them. Rather than simply triggering an alarm when a temperature reading crosses a threshold, it simultaneously analyzes complex, multi-sensor patterns to catch even subtle anomalies.

For equipment where safety is especially critical, dangerous scenarios that are difficult to recreate intentionally in the real world, such as pre-failure conditions, abnormal operating states, and extreme environmental shifts, can be run virtually in advance.

• Conventional approaches analyzed root causes only after an incident had already occurred. With a digital twin in place, warning signs can be identified before an incident happens. The shift is from reactive response to proactive prevention.

• On a manufacturing floor where a single equipment stoppage can result in losses of hundreds of thousands of dollars, a digital twin can prevent exactly that.


2) Predicting Replacement Cycles More Accurately Than a Static Maintenance Schedule

Following a fixed replacement schedule can lead to waste, replacing parts that still have useful life remaining. Conversely, components can fail unexpectedly before their scheduled replacement date.

• A maintenance schedule is written for the average machine. A digital twin observes and assesses your specific equipment, in real time.

• Through digital twin simulation, the remaining service life of components can be predicted based on live equipment data, resulting in shorter downtime and lower costs compared to reactive repairs.

• For example, by comprehensively analyzing data such as bearing wear, lubricant condition, and changes in vibration patterns, the system can deliver precise signals such as: "This component will need replacement within the next two weeks."

3) Run Experiments Without Stopping the Production Line

"What happens to the defect rate if we increase speed by 10%?"

"Would switching this component to a different material affect its durability?"

With a digital twin, testing is possible without halting actual operations. It is far safer to run into hundreds of failures inside a digital twin than to experience even a single failure during a real-world test. On the production floor, one misstep can translate into tens of thousands of  dollars in losses.

How to Build a Digital Twin: A 7-Step Detailed Guide

Step 1. Define Your Objectives

Every digital twin project requires a clearly defined objective. Without one, there is no basis for deciding what data to collect or which models to use. We encourage every team lead and executive reading this to work through the following.

• Target asset: Begin by scoping what the digital twin will cover. Determine whether you are building it around a specific product, an entire factory, a single piece of equipment, or a single building.

• KPIs (success criteria): When setting KPIs, the key is to define them in measurable terms. Rather than stating "reduce failures," frame it as something like "reduce unplanned downtime by 30%." Only then can outcomes be verified and improvements tracked.

Step 2. Data Collection and Semantic Mapping

Data is the foundation of any digital twin. Without it, nothing else functions. Here is a complete walkthrough of every stage involved in collecting and connecting data for a digital twin.

1) Data Collection

Building a digital twin requires bringing real-world data into the digital environment.

• Every organization faces its own set of circumstances, but here is one concrete example. Consider a factory where sensors on a particular machine are used solely to monitor whether the machine is running or stopped.

• This factory wants to build a digital twin for predictive maintenance, specifically to predict when the machine is likely to fail.

• But doing so requires more granular data, such as vibration and minor temperature fluctuations, and the existing sensors were never designed to capture that. Their purpose is entirely different.

In situations like this, there are two approaches, and in practice, running both in parallel is the most effective path forward.

• Installing additional sensors to collect real-world data: Some foundation of real data is necessary to generate synthetic data that accurately reflects reality. It is therefore advisable to attach sensors compatible with the digital twin system to the facility, accumulate at least some real-world data, and then proceed with the build.

• Generating synthetic data using real data as a reference: That said, waiting indefinitely for real data to accumulate is not realistic. There are time and budget constraints on how much data can be collected before building a digital twin. Synthetic data generation can bridge this gap. In early-stage scenarios where vibration or temperature data does not yet exist, physics-based simulation can be used to generate synthetic data and train the model first. This is especially effective for filling in rare cases, such as pre-failure conditions, that are difficult to capture intentionally in the real world.

2) Data Quality Diagnosis and Improvement

Collected data will inevitably contain missing values, outliers, and timestamp errors. Catching these issues at the point of ingestion makes every subsequent step significantly easier. The challenge is that manually inspecting data point by point demands too much time and too many resources.

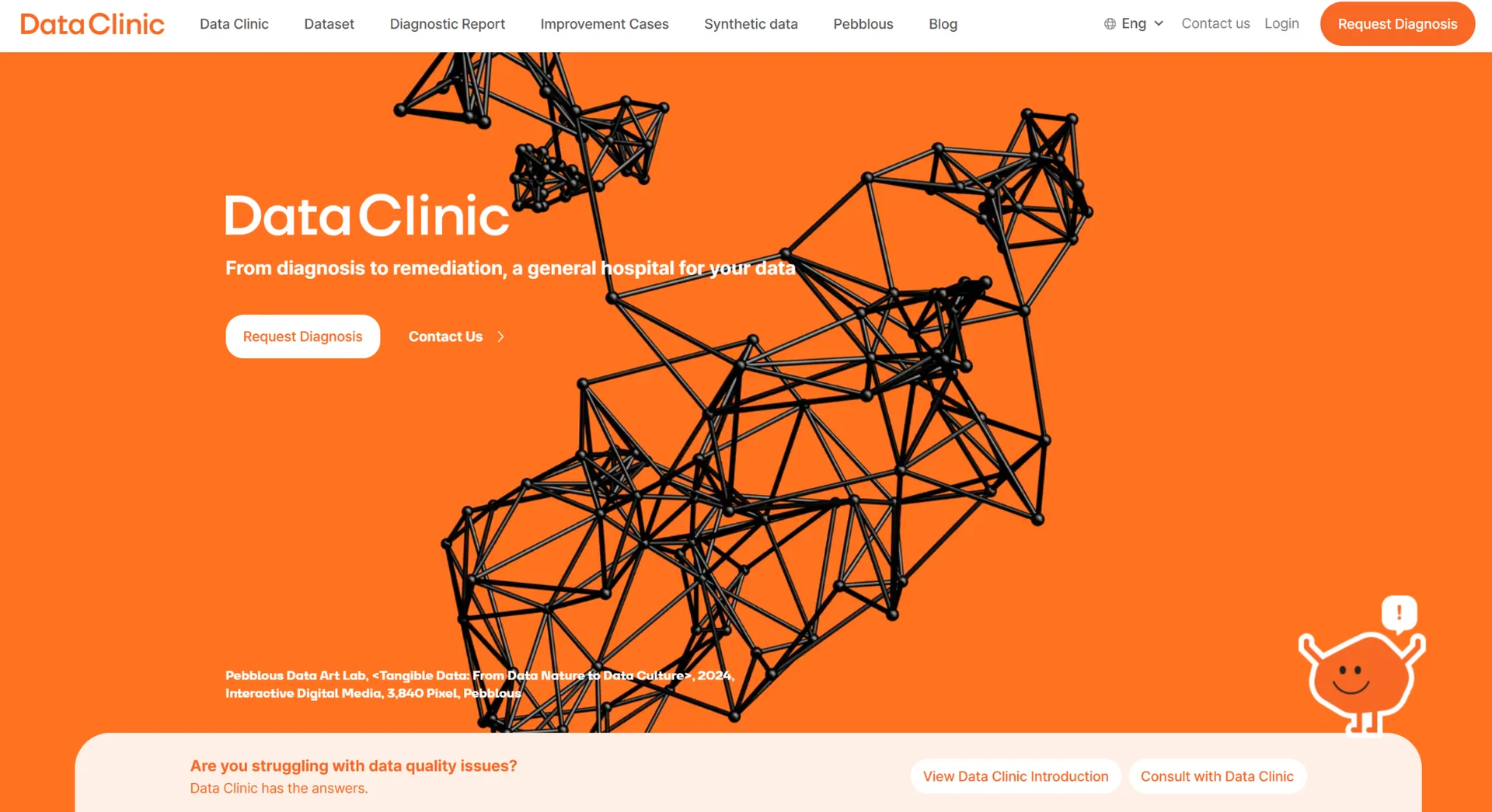

Pebblous' data quality management solution, DataClinic, diagnoses and improves data against both the international AI data quality standard ISO/IEC 5259 and each organization's own internal benchmarks.

3) Semantic Mapping and Ontology Definition

Once the data has been diagnosed and cleaned, the next step is connecting those numbers to what they actually represent in the real world.

• For example, suppose a sensor returns a value of 85.3. The system must be able to determine which machine and which component that reading belongs to, whether the unit is Celsius or Fahrenheit, and what the normal operating range is.

• To enable this, a hierarchical structure must be defined, an ontology that runs from factory → production line → equipment → component → sensor point, with each sensor's data mapped to the appropriate node.

Step 3. Model Creation and Validation

With data prepared, the next step is building the virtual model. There are four primary modeling approaches. As a data infrastructure specialist, Pebblous will also outline what data each model requires and how quality should be validated and improved.

1) Geometric Model

• Design drawings created in CAD software are converted into 3D models. These are used for spatial layout verification, collision detection, and maintenance accessibility simulation. This approach is well suited for organizations that want to first understand the spatial layout of facilities or buildings and assess maintenance access. It is particularly valuable in the early design stages of construction, real estate, smart buildings, and plant engineering.

• The most critical data for this model is CAD drawings, design documentation, and 3D scan data. If drawings are outdated or do not reflect actual construction, the model and reality are misaligned from the outset, making it essential to keep them current.

2) Physics-Based Model

• This model type expresses the laws of physics, including thermodynamics, fluid dynamics, and structural mechanics, as mathematical equations to calculate system behavior. The physical laws that govern system behavior are the foundation of this approach. Representative industries include nuclear power, oil refining, aerospace, and automotive design engineering. It is also well suited for organizations where safety is paramount and simulation accuracy is the top priority.

• The most important data for physics-based models is material property values and initial operating condition data. If the calibration data used to close the gap between theoretical and real-world values is insufficient, simulation results can diverge significantly from reality.

In the post-validation improvement phase, calibration data that bridges the gap between theoretical and measured values is the critical factor. Values such as heat transfer coefficients and friction coefficients frequently differ between theoretical models and actual field conditions. When real-world measurement data is scarce or of poor quality, the model will fail to track reality accurately no matter how much parameter tuning is applied.

3) Data-Driven Model

This model learns from data accumulated in the real world, including failure histories. High-quality data is a prerequisite.

When validating this model, confirm that the distributions of the training data and validation data are closely aligned. Normal operating data is typically abundant, while pre-failure data is rare. If the validation dataset does not include enough of these rare cases, there is no reliable way to confirm whether the model actually performs well in practice.

Additionally, when operating patterns shift over time due to seasonal variation or changes in production volume, model drift can develop rapidly, causing models trained exclusively on historical data to lose their ability to reflect current conditions.

4) Hybrid Model

• This approach combines all three models described above. The physics model provides realistic behavioral simulation, while data is used to learn and correct deviations from real-world conditions. It is gaining traction in industries where environmental variables are numerous and precise prediction is essential, including wind and solar energy, robotics, autonomous vehicles, and manufacturing.

Step 4. Data Synchronization

Synchronization between the real world and the virtual environment is, in many ways, the core of what makes a digital twin work. When conditions change on the actual floor, that data must flow into the digital twin immediately and update it, or reliable testing becomes impossible. Without real-time synchronization, the accuracy of every judgment the system makes degrades.

Types of Synchronization

Synchronization can be divided into two types based on the direction of data flow.

• Unidirectional synchronization: Data flows in one direction only, from the real world to the twin. This is used for monitoring the state of physical assets on the floor.

• Bidirectional synchronization: Data flows from the real world into the digital twin, and the optimal conditions identified through the twin's analysis are fed back to the physical equipment as automated control commands.

Bidirectional synchronization warrants close attention. Conventional simulation only observes reality. A digital twin, enabled by bidirectional synchronization, can actually change it. That said, an incorrect control command sent to physical equipment can result in a real-world incident. Security and safety validation are therefore critical when implementing bidirectional synchronization.

Synchronization Frequency: Choosing the Right Cadence

The appropriate frequency differs by data type, and designing this correctly from the start is more challenging than it might appear. At a foundational level, design your synchronization cadence around your specific objectives. The following framework provides a useful reference.

• Immediate (under 100ms): Data directly tied to safety. Temperature spikes, vibration anomalies, and pressure overloads are conditions where a delayed response can lead to an incident. These require real-time processing.

• Periodic (minutes to hours): Data used to observe trends, such as production volume, quality metrics, and energy consumption. A one-minute lag here carries no significant consequences.

• Event-triggered only: Data that changes infrequently, such as equipment specifications and parts replacement histories. Updates are needed only when a change event occurs.

Step 5. Simulation

With your digital twin in place, it is time to put it to work. A wide range of scenarios can be tested in a virtual environment without halting real operations or taking on unnecessary risk.

But consider this situation: your simulation results fall short of expectations.

For instance, prediction accuracy is low, or anomaly detection is not functioning as intended. In these cases, the problem can often be traced back to data. While it is difficult to generalize, experience consistently points to insufficient training data or an inadequate representation of rare cases as the root cause.

Yet when developing physical AI, many teams overlook a particular pitfall:

"Data that looks plausible but is physically impossible in the real world"

On the surface, the data appears acceptable. But beneath it, the physical laws that physical AI fundamentally depends on have not been applied. The result is system failure once deployed in production. What is needed is a synthetic data strategy grounded in the laws of physics.

With Pebblous' synthetic data generation engine, PebloSim, the process works as follows. Physics-compliant simulations are executed directly within the actual digital twin environment, and synthetic data is generated from those results. This includes rare cases that are difficult to capture intentionally in the real world, such as pre-failure conditions and abnormal operating states.

Step 6. Data Visualization

The analytical output of a digital twin only has value if a human can read it. No matter how sophisticated the models and AI running behind the scenes, real-time response becomes difficult if the people on the floor cannot grasp the situation at a glance.

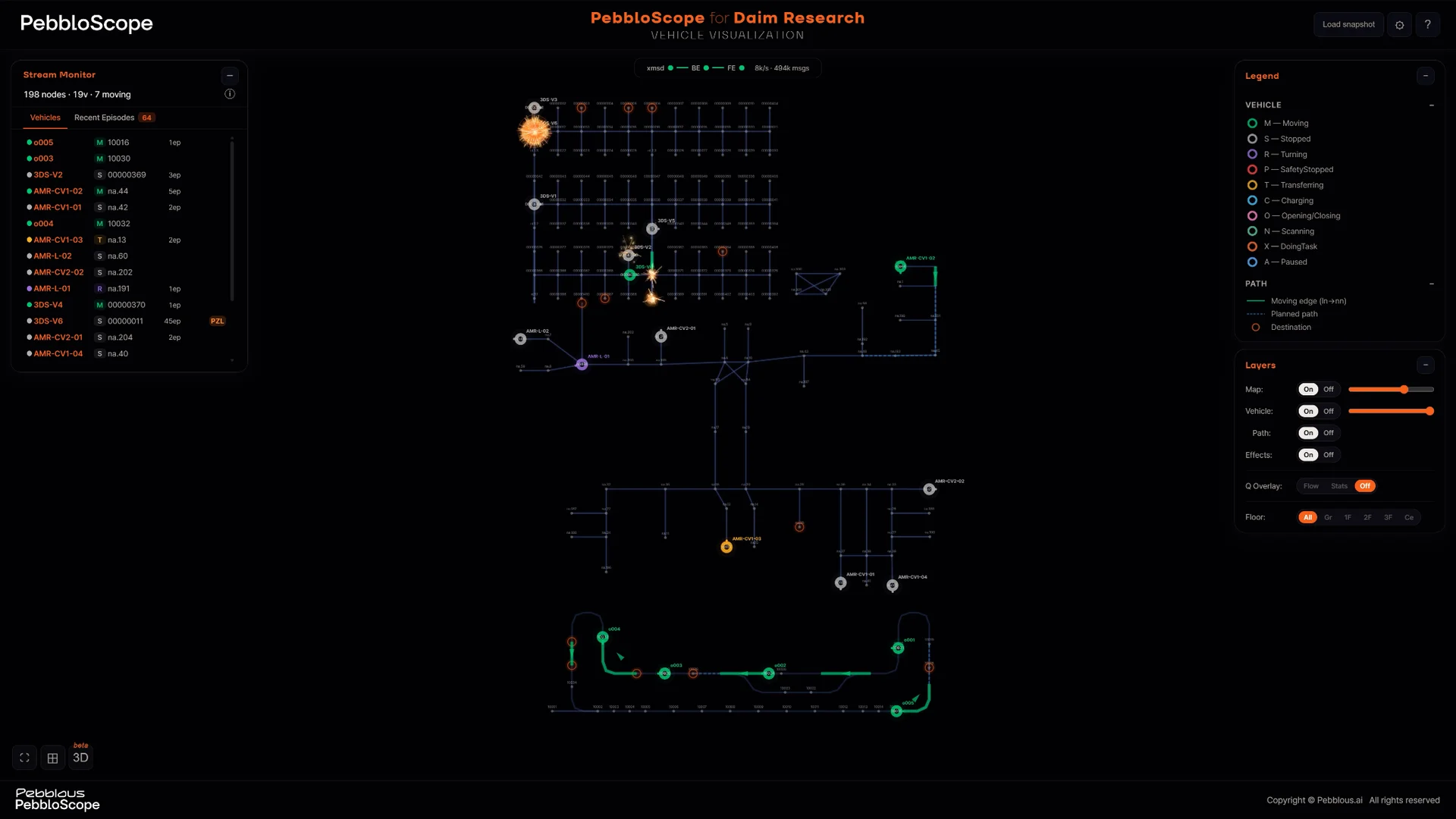

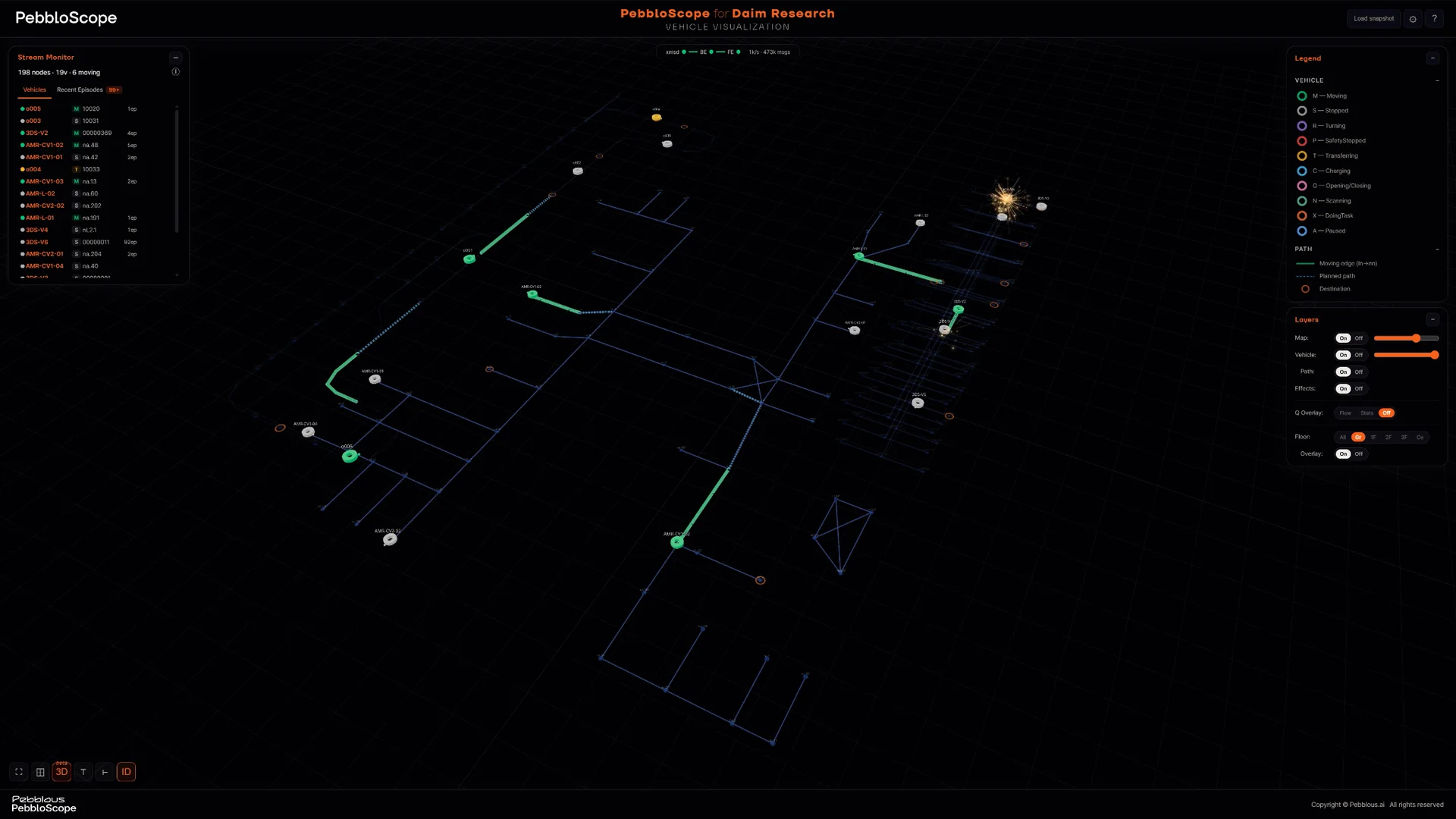

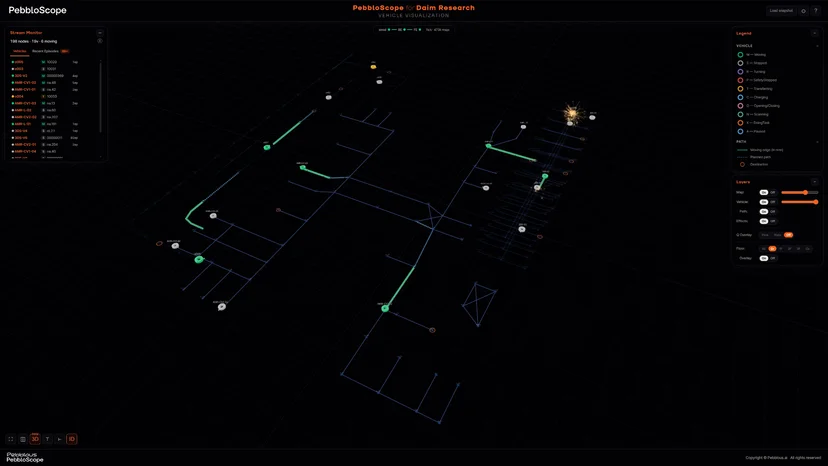

Pebblous addresses this through its data visualization tool, PebbloScope. Here is an example drawn from organizations Pebblous has partnered with.

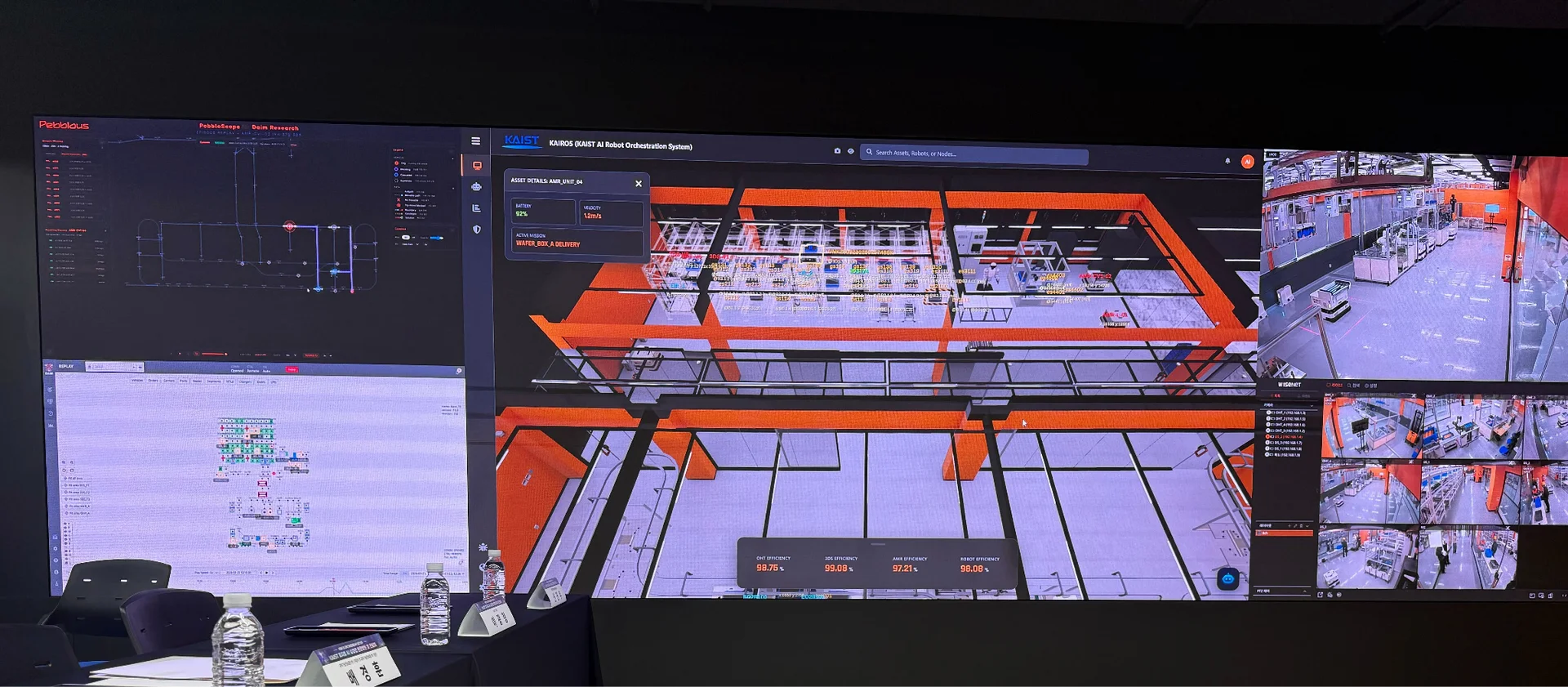

The image below is from a collaboration with Daim Research, a leading manufacturing AI company in Korea. Daim Research built the dark factory platform 'Kairos' at KAIST (Korea Advanced Institute of Science and Technology), one of Korea's top research universities. The movement of robots operating within the dark factory is rendered through Pebblous' visualization tool, PebbloScope.

Pebblous also collaborated with the Physical AI Convergence Technology Project Office under the Information Innovation Headquarters at Jeonbuk National University in Korea, visualizing data as part of a physical AI infrastructure built for an unmanned factory. Through data visualization, potential collision incidents involving physical AI were identified with precision, and the project achieved a data consistency rate exceeding 99.5%. Below are robotic arm digital twin simulations built by Pebblous as part of that project.

For executives and team leads reading this, a tool like this is worth evaluating for your own complex data visualization requirements.

• PebbloScope's 3D visualization technology is also protected under U.S. Patent US 12,481,720 B2. It is a capability exclusive to Pebblous.

• The patent defines a technology called 'data imaging,' which forms the direct technical foundation of PebbloScope. It enables high-dimensional data that was previously invisible to be laid out across a 3D space, making distributions and densities immediately apparent, and presents before-and-after comparisons using IOD (Image of Data) and MIOD (Modified Image of Data).

Step 7. Operational Management

A digital twin is a direct reflection of reality. As reality changes, the twin must continue to evolve alongside it. Every time equipment is replaced, a process is modified, or operating conditions shift, the twin must be updated in parallel, or it will drift out of alignment with the real world. So how should you manage the interplay between a changing reality, your digital twin, and your data?

1) Performance Monitoring

Because reality changes, the accuracy and anomaly detection performance of the digital twin itself will gradually degrade over time. Consider a factory: as machines wear down, seasons change, and production volumes fluctuate, operating patterns shift. Yet the model was trained on historical data and becomes increasingly unable to reflect current conditions. To counter this model drift, performance must be measured on a regular basis, and when it falls below an acceptable threshold, the model must be retrained or recalibrated on fresh data.

Manually measuring performance with consistency and accuracy, however, is a significant operational challenge. When evaluating data quality management solutions for your digital twin build, it is worth confirming whether automated monitoring capabilities are included.

Pebblous DataClinic 2.0, for example, addresses this directly with a built-in AI Data Scientist, AADS (Agentic AI Data Scientist). It automatically detects the moment data begins to shift and proactively resolves quality issues before degradation sets in, eliminating the need for manual model drift monitoring.

2) Data History Management

"What happens if you don't maintain a record of your data history?"

Without a precise log of when, why, and by whom changes were made, tracing the root cause of a problem becomes extremely difficult. This oversight makes it hard to pinpoint when an issue first emerged, allowing errors to accumulate undetected.

Data history is an area consistently overlooked across many organizations. Most companies focus almost exclusively on generating data, and version history management simply falls through the cracks.

Maintaining a thorough data history is therefore essential. Here is how DataClinic ensures it.

• The reason for each change and the approving party are recorded automatically, not manually. Any data state from a specific point in time can be restored instantly when needed.

• Root causes of errors can be identified quickly and efficiently.

• Additionally, demonstrating transparent, auditable data lineage is a prerequisite for compliance with a broad range of regulations and standards, including NIST AI RMF, SOC 2, the Colorado AI Act, GDPR, and the EU AI Act. DataClinic addresses this requirement as well.

3) Security and Governance

• A digital twin concentrates all of a company's core process data and operational expertise. This centralization makes security a critical priority. If data detailing equipment operations and anomaly locations were exposed, a competitor would gain direct access to your most valuable institutional knowledge.

• When bidirectional synchronization is in place, the stakes are even higher: an external breach could cause physical equipment to malfunction, making the security imperative all the more significant.

Security must therefore be maintained across every stage of data creation and management. DataClinic is built with this in mind, learning and adhering to each organization's internal security policies.

The Digital Twin Market: Scale and Outlook

As of 2025, the global digital twin market is estimated at approximately $21 and $29 billion. By 2030, it is projected to grow to between $120 and $150 billion, with compound annual growth rates of 32 to 48 percent depending on the research firm.

Digital twins are drawing serious attention not only from executives and team leads like those reading this, but from organizations across every industry.

The market has moved beyond proof-of-concept into a phase of concentrated, real-world investment. Where investment concentrates, it signals that a technology is no longer theoretical. It is delivering measurable results in production environments.
